Ps5 slim HDMI replacement

This is a PS5 slim came for HDMI replacement. It was repaired, refresh liquid metal and cleaned before putting all back together

Before

After

Before

After

Before

After

Fan before

Fan after

Xbox HDMI repair

Here we have an Xbox HDMI port was ripped off and took along with it 10 Pads. I spent a bit if time replacing each one with wires and it was successful repair.

broken traces — Before

beautiful wires traces repair — After

beautiful repair with HDMI on — After

PS5 fan connector repair

Here is a job to fix the fan connector due to someone trying to get connector off to clean their PS5. In the end it was fix and console got a full clean as well as liquid metal refresh

OMG it such a mess and broken — Before

oh yeh nice and clean all fix and working — After

Xbox series s deep clean

Dusty, loud, running hot and overheating → Now no overheating, cleaned and quiet again

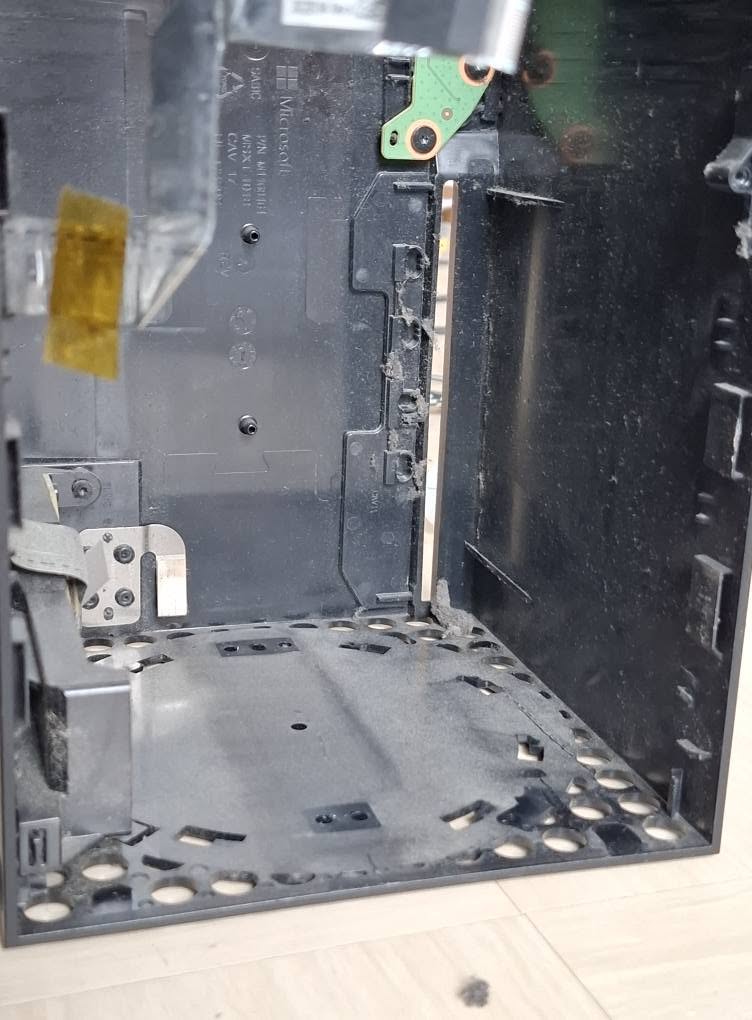

this chassis is a little dusty — Before

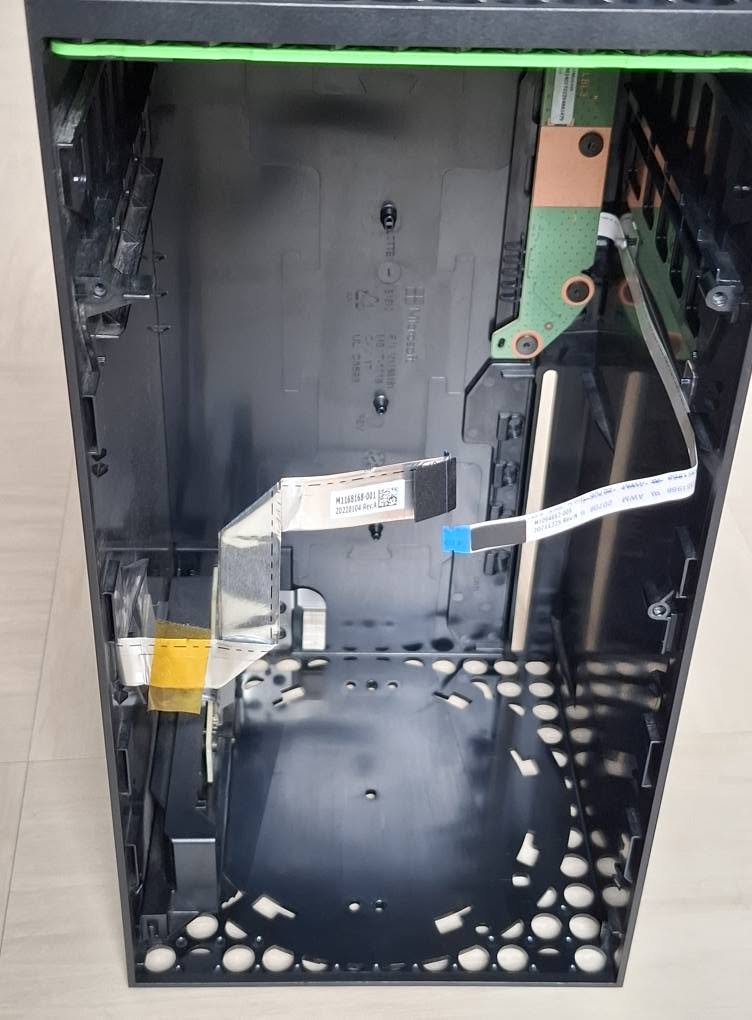

Xbox series x chassis so clean — After

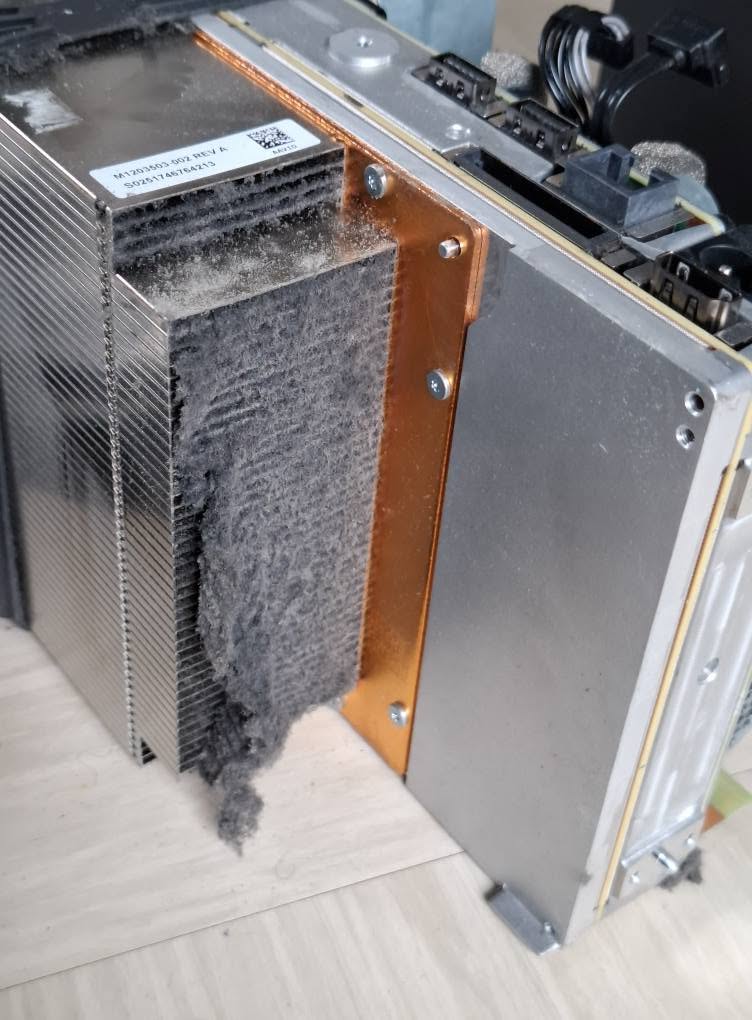

so thick and dust — Before

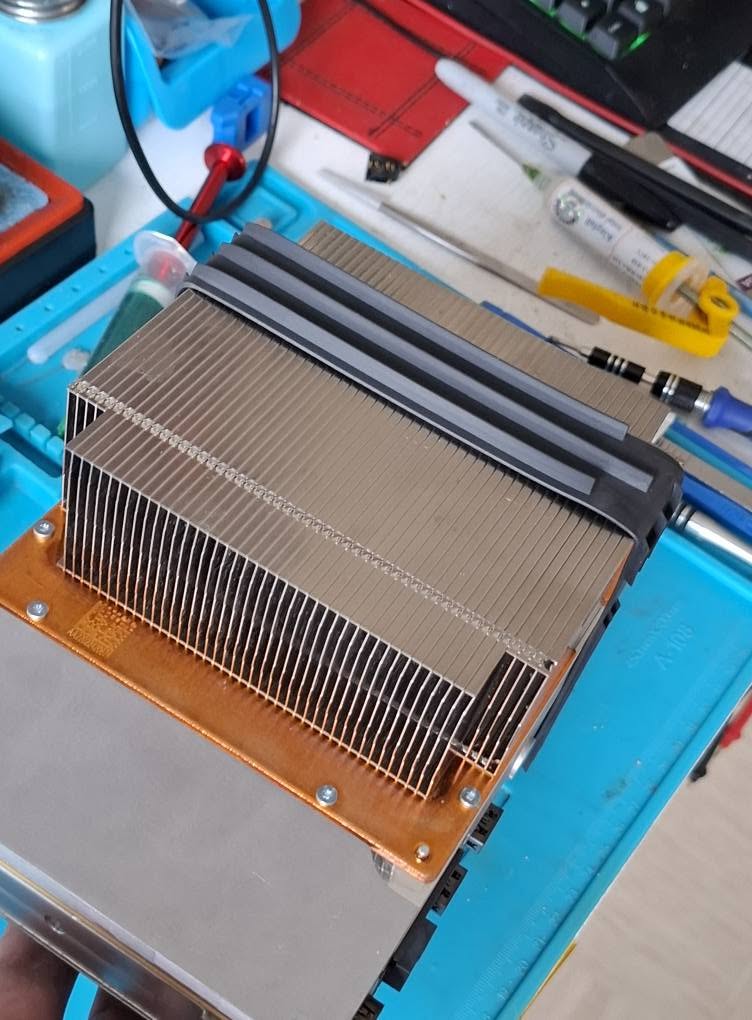

so clean Xbox series x heat sink — After

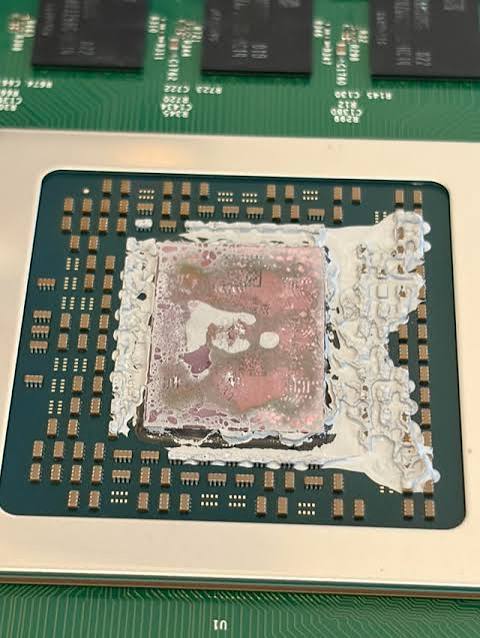

dried up — Before

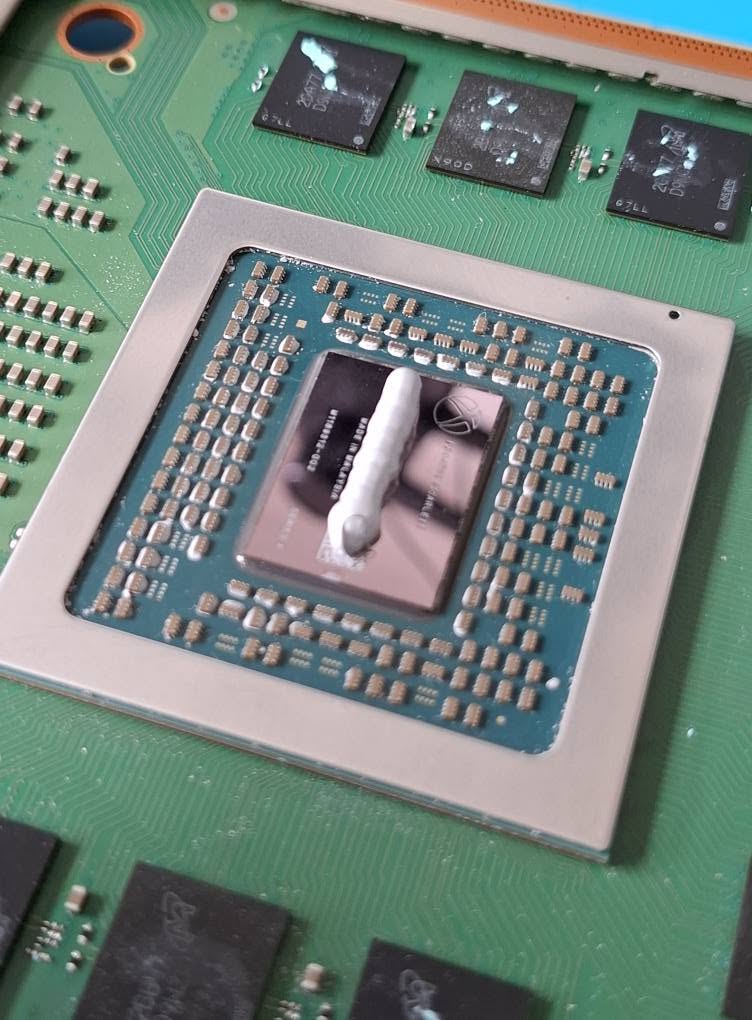

so nice just the perfect amount of thermo paste — After

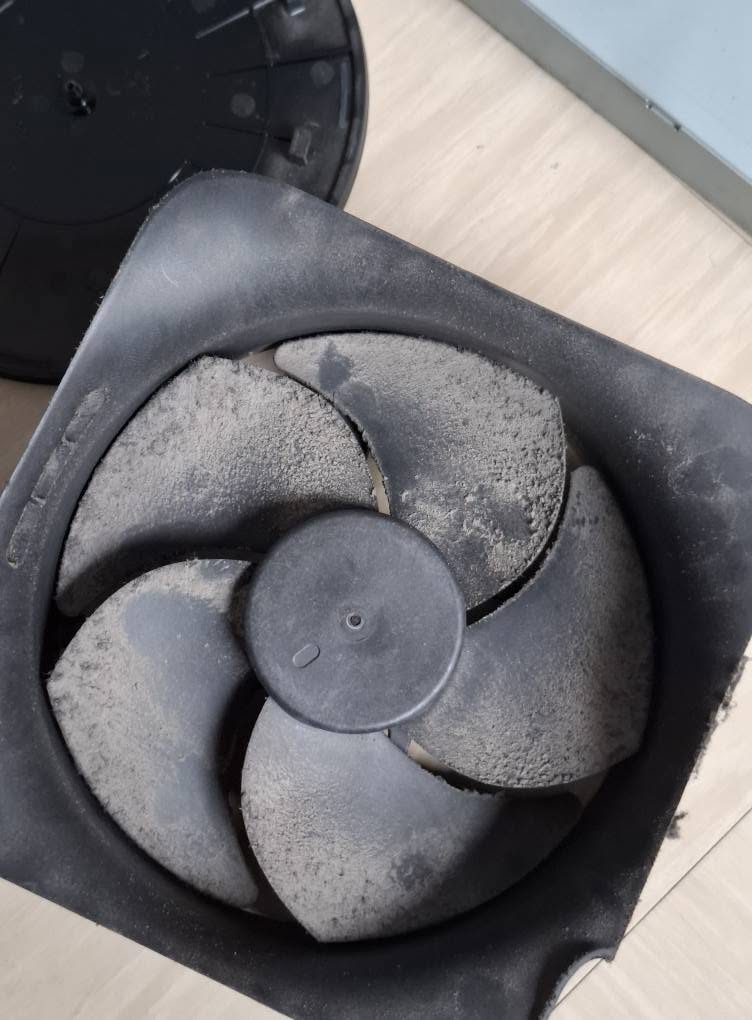

Dust Xbox series x fan — Fan before

Xbox series x fan cleaned — Fan after

PS4 full clean

Dusty, loud, running hot and overheating → Now no overheating, cleaned and quiet again

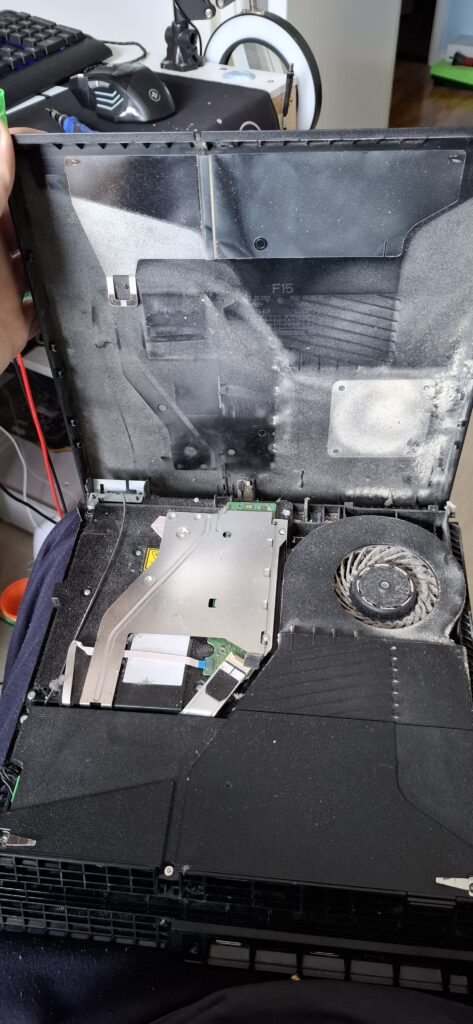

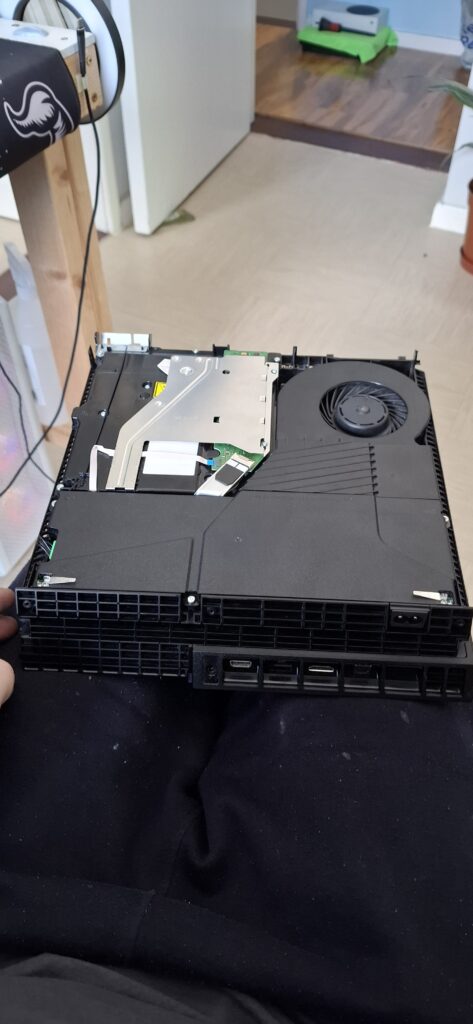

View of a dusty PlayStation 4 console during a deep clean service — Before

magnificent PS4 after a good clean — After

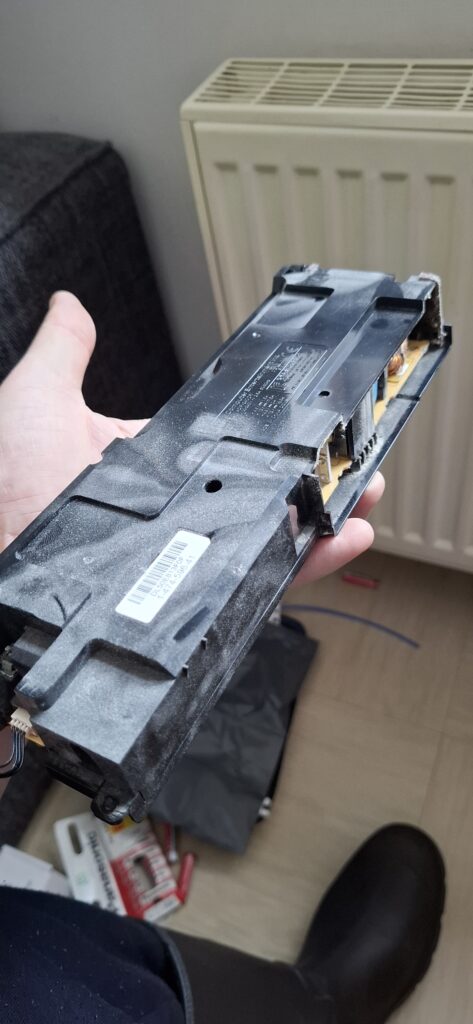

Dusty ps4 PSU — Before

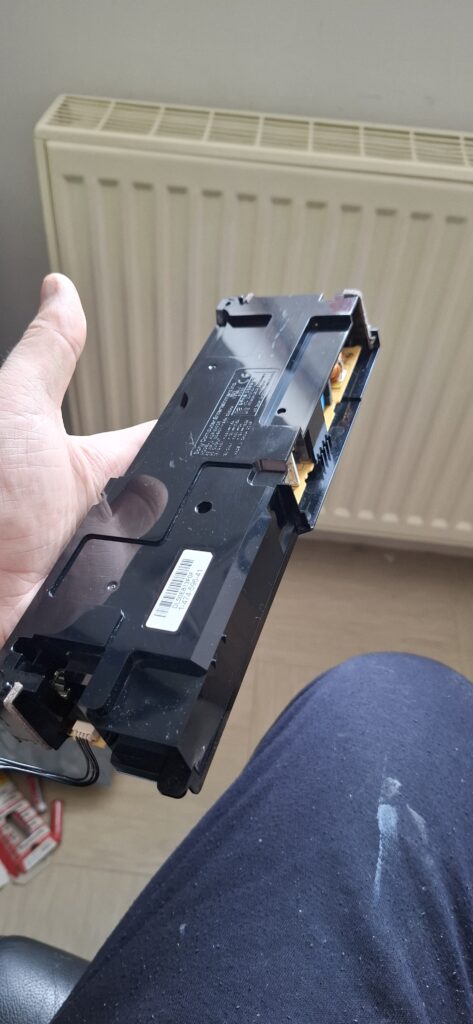

a very dust free ps4 PSU — After

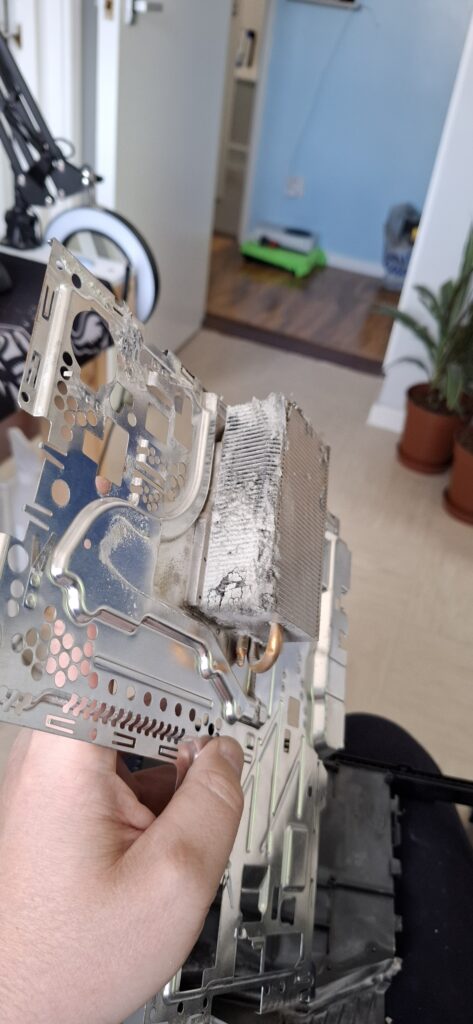

so much dust no wonder it over heats — Before

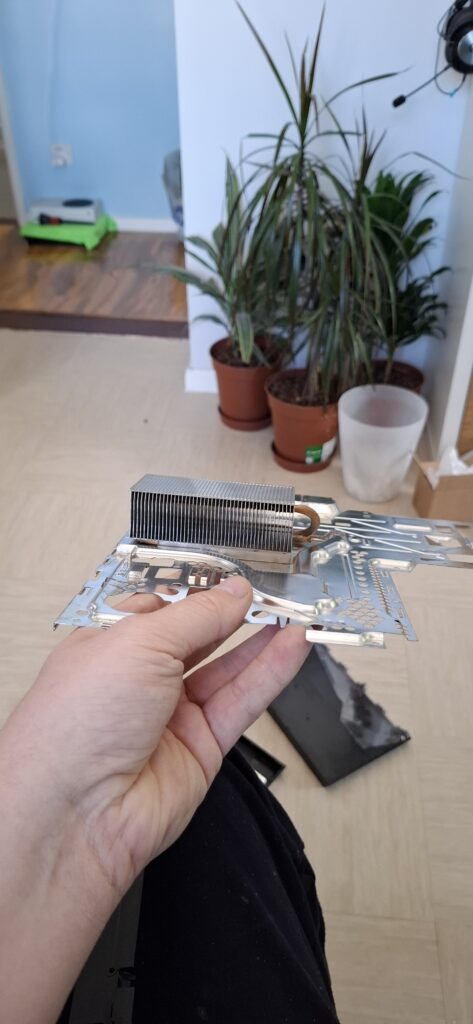

so shinny and clean — After

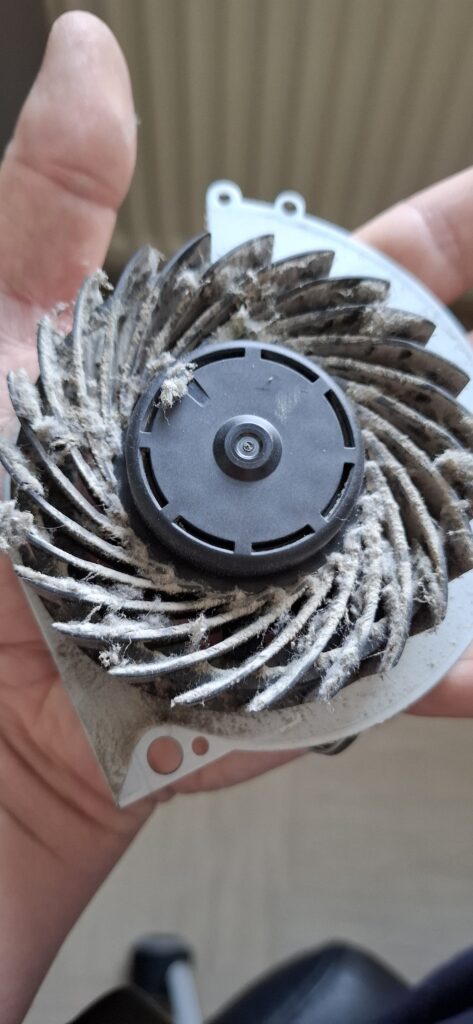

PS4 fan all clog up with dust — Fan before

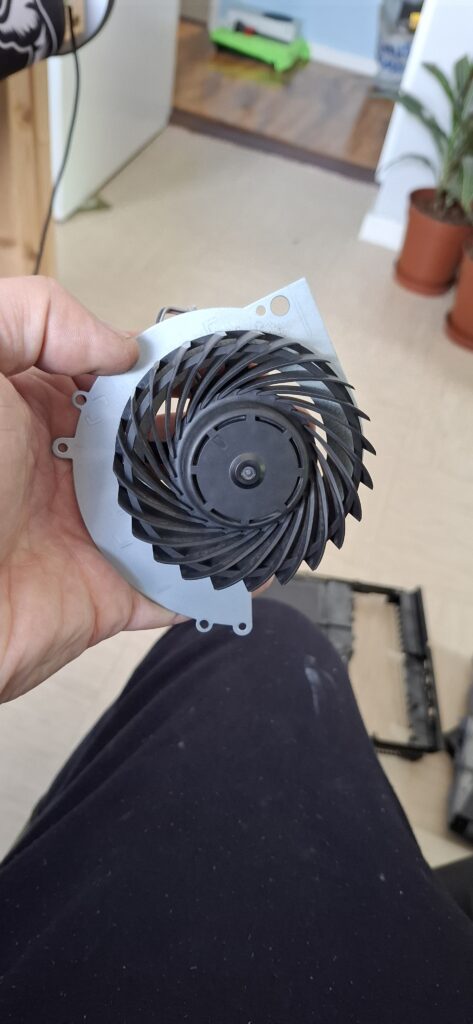

and now it nice clean PS4 fan — Fan after

PS5 service

Dusty, loud, running hot and overheating → Now no overheating, cleaned and quiet again

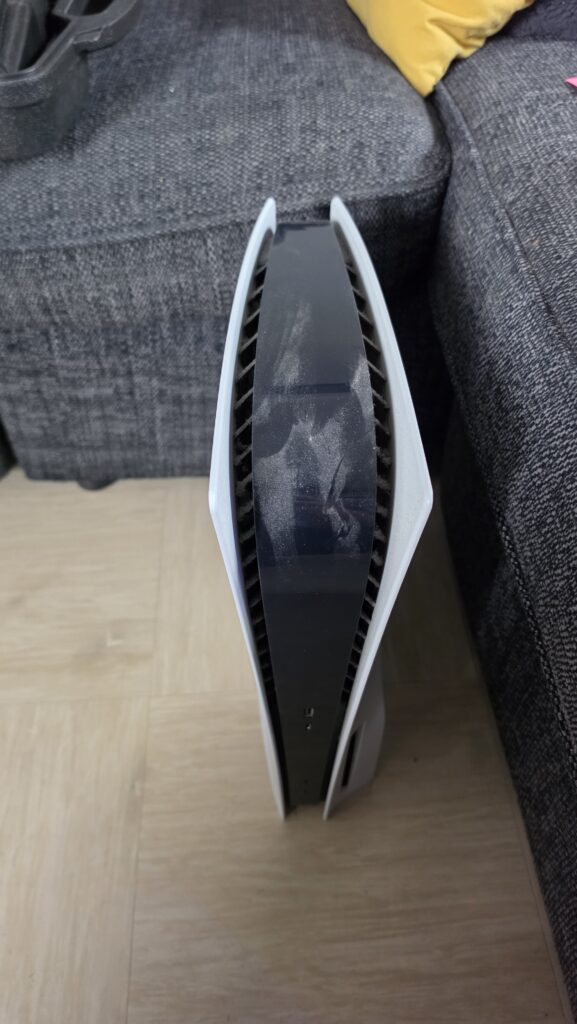

Front view of a dust PlayStation 5 console during a clean service — Before

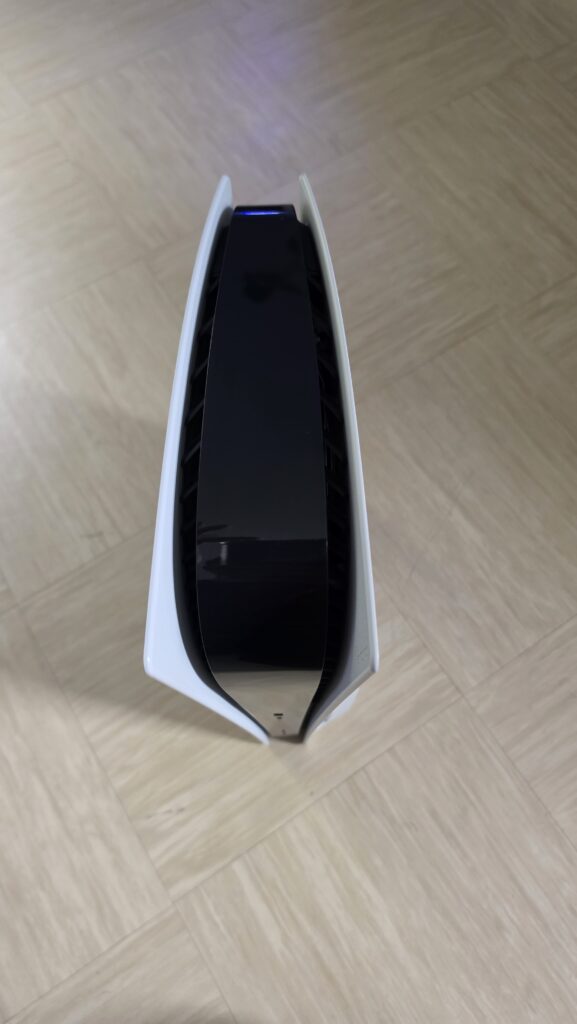

Deep-cleaned PlayStation 5 console showing pristine front panel and chassis — After

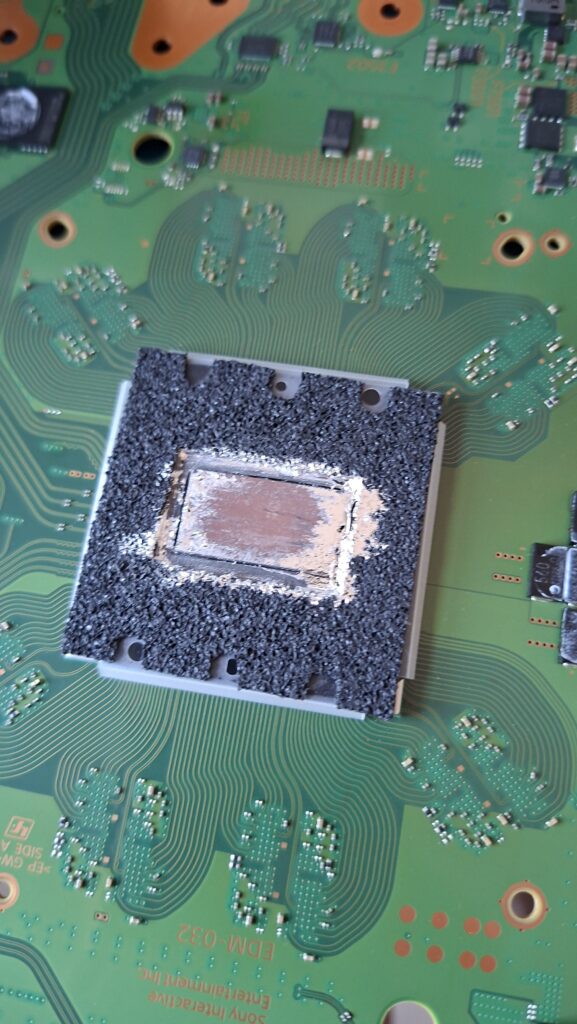

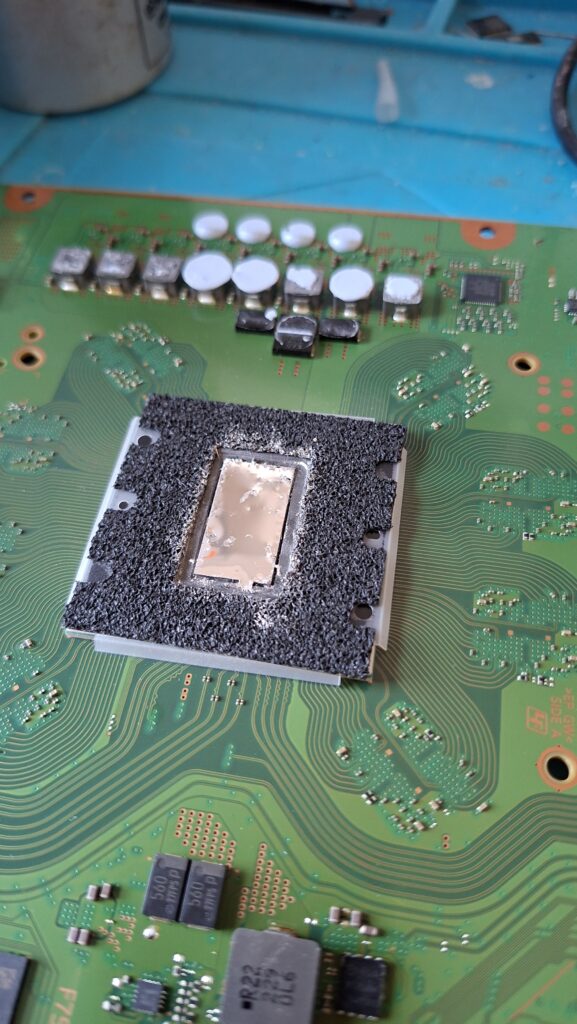

Liquid metal application on a PlayStation 5 console during it so dry — Before

Liquid metal application on a PS5 console during it looking fresh and clean no dry spot — After

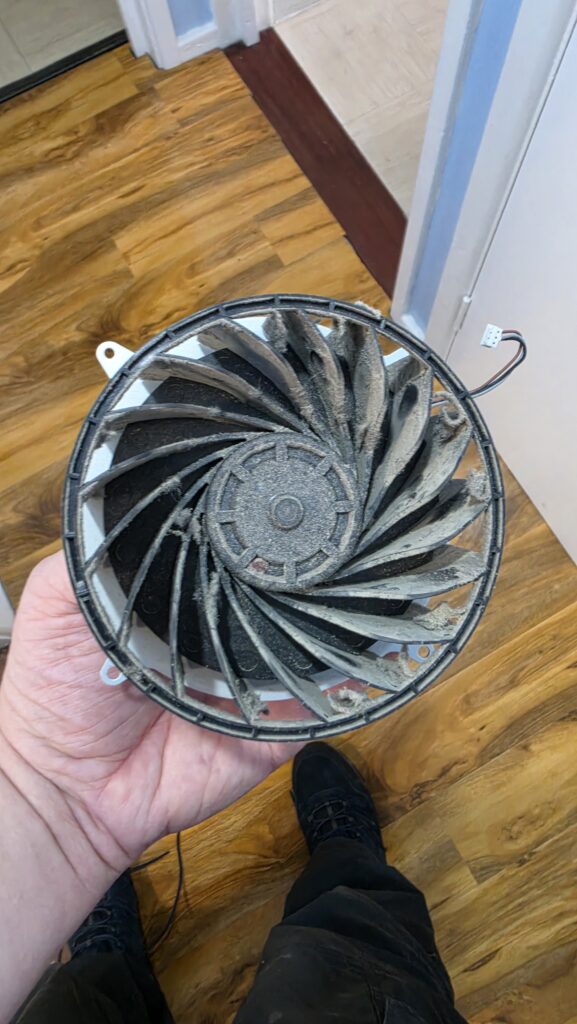

Severely dust-clogged PS5 console cooling fan during an internal deep cleaning service — Fan before

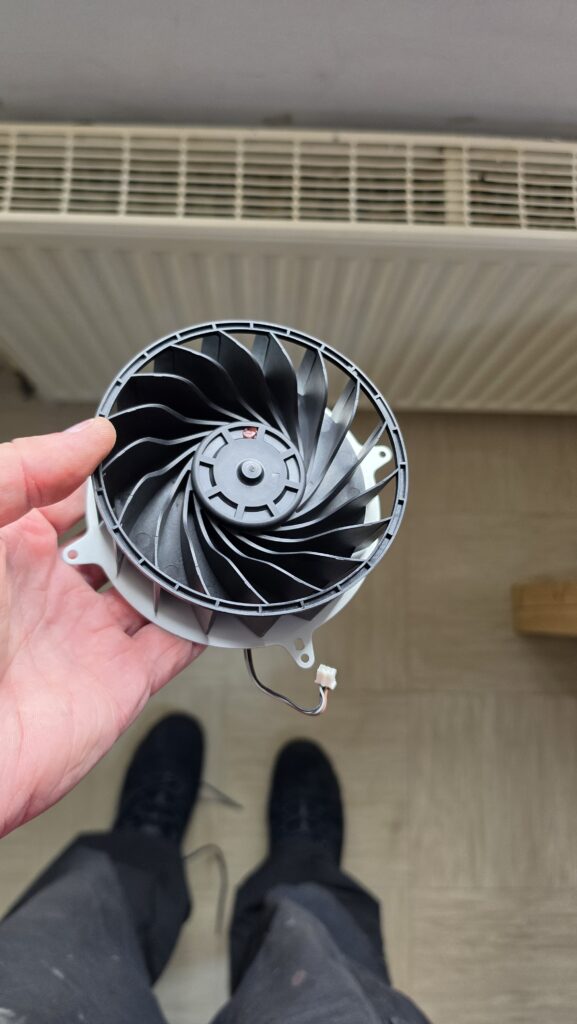

Close-up of a PS5 clean cooling fan after a deep clean — Fan after
